Productdetails:
|
Machine weight: | 12000KG | Moving type: | Wheel Crawler Excavator |
---|---|---|---|
Bucket capacity: | 0.4m3 | After-sales service provided: | Overseas third-party support available |
Condition: | New | Warranty: | 1 year or 2000 working hours |
Engine: | Yanmar | Color: | Yellow |
Origin: | China Mailand | Product name: | construction machinery |
Type: | Wheel Crwaler Excavator | ||
Markeren: | Digger Crawler Hydraulic Excavator,9 Ton Crawler Hydraulic Excavator,9 Ton Mini Diesel Excavator |
(Model) | X120 | |
(Bedrijfsgewicht) | 12 t | |
(Algemene afmetingen) | 6570x2120x2982 mm | |
(Verdracht van de emmer) | 0.4 | |

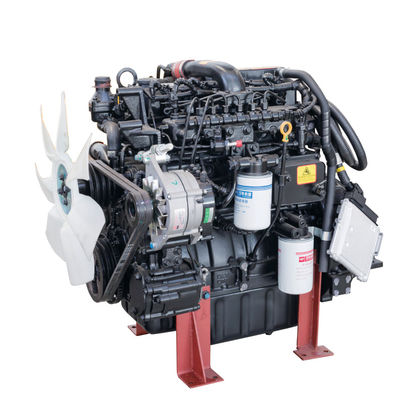

Motor |
(motortype) | YC4DK100-T301 |
(nominaal vermogen/snelheid) | 73.5 kW | |
(Aantal cilinders/type) | 4 cilinders in lijn | |
(Bore en slag) | 94*105 | |
(spanning van de startmotor) | 12V | |
(Starttype) | Elektrische | |
Hydraulisch systeem
|
(Hydraulische systeemdruk) | 30 MPa |
(Hydraulische stroomstroom) | 250 l/min | |
(Gear) | Voorwaarts 1 2 3 4 ; Terugwaarts 1 2 | |
(Hydraulische systeemdruk) | 30 MPa | |
Specificatie van de machine |
(Bucket Digging Force) | 81Kn |
(Arm Digging Force) | 65Kn | |
(Kwaliteit) | 35 graden | |
(Maximaal graafhoogte) | 8122 mm | |
(Maximum storthoogte) | 6042 mm | |
(Maximum graafdiepte) | 4840 mm | |
(Maximaal graafradius) | 7680 mm |
